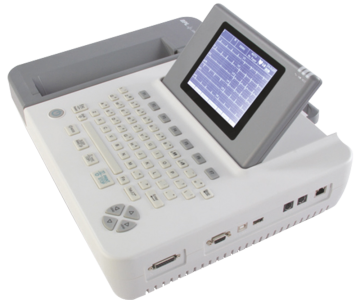

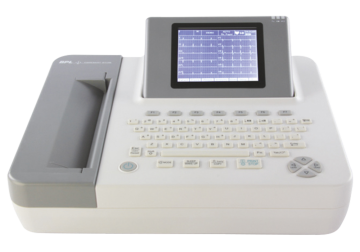

Cardiart 9108 12-channel ECG Machine
BRAND :BPL
Detailed Description
Cardiart 9108 is a 12-channel ECG recorder with built-in ECG parameters measurement and interpretation. With QWERTY keyboard and 5.7 inch high-resolution foldable display, this device is easy to use, supports external USB printer, as well as multi-format reports export
- 12-channel ECG recording
- 5.7-inch foldable LCD display
- Automatic parameter measurement and interpretation
- 24-bit A/D converter, 0.01 - 300 Hz bandwidth, 16000 Hz sampling frequency
- Internal storage of upto 800 ECGs that can be enlarged by USB
- Built-in rechargeable Li-ion battery
- Report formats: PDF and optional SCP/FDA-XML/DICOM data export
- Connectivity: FTP, supports barcode scanner
- USB printer, optional Wi-Fi
- Optional PC interface software allows to access EMR/PACs/GDT-based systems (HL7 protocol)
Technical Details
| Display | 5.7 inch single color LCD Display |
|---|---|
| Weight | approx.5.0kg (11.0 lbs)(Excluding recorder paper and battery) |
| Dimension | 420mmx330mm x105mm |
| Communication Interface | Ethernet, RS232, USB |
| Power Supply | 100V-240VAC, 50Hz/60Hz |
| Battery | Built-In Rechargeable 14.8V, Li-Ion Battery, 2500 mAh |
| Leads | 12 standard leads |
| Resolution | 2.52uV/LSB |
| Time Constant | ≥3.2s |
Important Legal Disclaimer
The product images and descriptions on this website are provided for indicative purposes only. For detailed and accurate information, including specifications and features, please visit the respective brand's website. If you have any queries or require further assistance, do not hesitate to contact us directly.
Medical Products: Please be aware that medical products listed on this website should not be used for diagnosis, treatment, or prevention of any medical conditions without consulting a qualified healthcare professional. Always refer to the official product documentation provided by the manufacturer or consult your doctor before making any decisions regarding medical products.
*Please note that product specifications, features, and availability are subject to change without prior notice. All trademarks and registered trademarks are the property of their respective owners.
Simultaneous 12-channel ECG recording with 10-lead acquisition
5.7 inch high resolution foldable display enables the easy viewing of patient demographics and real time ECG data option
The user-friendly design of the machine ensures easy operation
Ensures the freedom of easy use
Built-in ECG parameters measurement and interpretation
Different print modes include pre-sample, realtime sample, period sample and arrhythmia triggered sample
