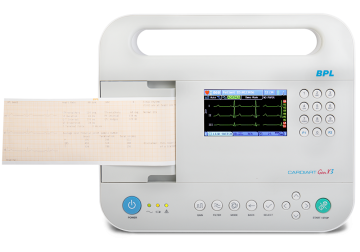

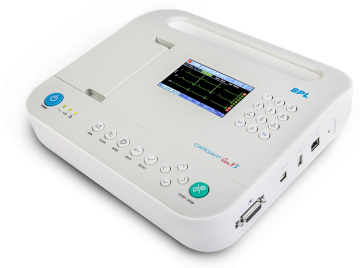

Cardiart GenX3 IS 3-Channel ECG Machine
BRAND :BPL
Detailed Description
The CARDIART GenX3 is a three-channel ECG recorder featuring a 4.3-inch color TFT display, advanced ECG analysis, rechargeable lithium battery, and multiple operating modes for reliable cardiac diagnostics.
- Three Channel ECG Recording with trace darkness control
- 4.3-inch color LCD screen
- Glasgow ECG interpretation algorithm
- 12-bit A/D converter, 0.05 – 150 Hz bandwidth, 1000Hz sampling frequency
- Alphanumeric keypad with soft silicone keys
- Full disclosure view of ECG analysis on display
- Internal storage 250 ECGs
- Li-ion rechargeable battery – 250 ECG’s
Technical Details
| Display | 4.3-inch color TFT, 480 x 272 pixels |
|---|---|
| Battery | Rechargeable lithium, 11.1V, 3000mAh |
| Storage Capacity | 250 ECGs with cyclic overwrite |
| Recording Modes | Manual and Auto |
| Input Impedance | >10 MΩ @ 10 Hz |
| Frequency Response | 0.05 Hz to 150 Hz |
| Heart Rate Range | 30 to 240 BPM |
| Dimensions | 300mm x 260mm x 80mm |
| Weight | Approx. 2 kg |
| Paper | 80mm thermal rolls |
| Warranty | 3 Years |
Important Legal Disclaimer
The product images and descriptions on this website are provided for indicative purposes only. For detailed and accurate information, including specifications and features, please visit the respective brand's website. If you have any queries or require further assistance, do not hesitate to contact us directly.
Medical Products: Please be aware that medical products listed on this website should not be used for diagnosis, treatment, or prevention of any medical conditions without consulting a qualified healthcare professional. Always refer to the official product documentation provided by the manufacturer or consult your doctor before making any decisions regarding medical products.
*Please note that product specifications, features, and availability are subject to change without prior notice. All trademarks and registered trademarks are the property of their respective owners.
It features a 4.3-inch color TFT display.
It can store up to 250 ECGs with cyclic overwrite.
Yes, it offers USB connectivity for data export and real-time transfer.
Both automatic and manual acquisition modes are supported.
The rechargeable lithium battery recharges in under 3.5 hours.
