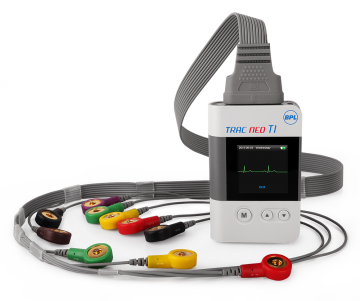

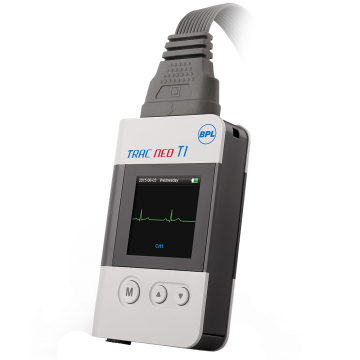

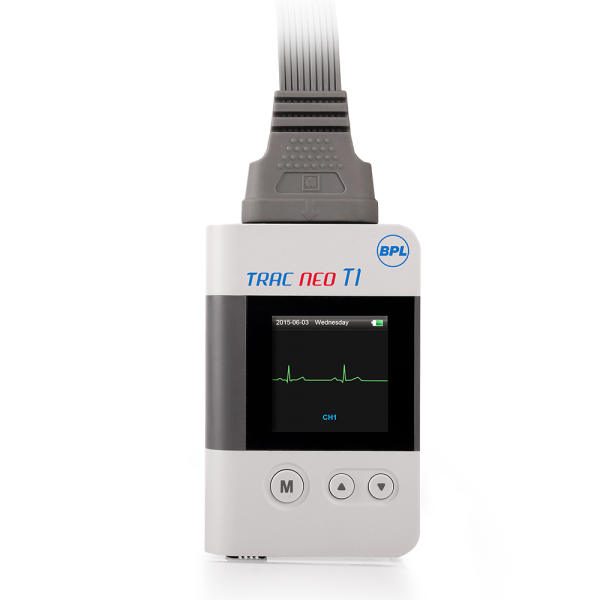

ECG Holter Monitor - BPL Trac Neo T1
BRAND :BPL
Detailed Description
Compact and lightweight ECG holter monitor with advanced analysis, real-time display, and customizable workflow.
- IP27 water and dust resistance
- Real-time waveform display on OLED screen (128x128)
- Compact size: 76mm x 49mm x 16mm ±2mm
- Lightweight design, 50g ±5g (excluding battery)
- Powered by a single AAA battery for up to 144 hours of recording
- 10 electrodes generate 12-lead ECG signals
- Advanced pacemaker detection to prevent signal artifacts
- Two data transfer modes: USB and micro SD card
- Comprehensive diagnostic features with ST segment and variability analysis
- Supports up to 6 days of continuous ECG data recording.
No video available for this product.
Technical Details
| Size | 76mm x 49mm x 16mm ±2mm |
|---|---|
| Weight | 50g ±5g (excluding battery) |
| Screen | OLED, 128 x 128 resolution |
| Power Source | 1 AAA IEC LR03 (1.5V) alkaline battery |
| Recording Duration | Up to 144 hours (sample rate 128Hz) |
| Electrodes | 10 electrodes supporting 12-lead ECG signal |
| Data Transfer | USB cable or micro SD card |
| Storage | 1GB micro SD card records up to 24 hours at 1024 samples/sec |
| Protection Level | IP27 for water and dust resistance |
| Advanced Analysis Features: | Includes Atrial Fibrillation, Heart Rate Turbulence, Heart Rate Variability, and ST Segment Analysis. |
| Warranty | 3 Years |
Important Legal Disclaimer
The product images and descriptions on this website are provided for indicative purposes only. For detailed and accurate information, including specifications and features, please visit the respective brand's website. If you have any queries or require further assistance, do not hesitate to contact us directly.
Medical Products: Please be aware that medical products listed on this website should not be used for diagnosis, treatment, or prevention of any medical conditions without consulting a qualified healthcare professional. Always refer to the official product documentation provided by the manufacturer or consult your doctor before making any decisions regarding medical products.
*Please note that product specifications, features, and availability are subject to change without prior notice. All trademarks and registered trademarks are the property of their respective owners.
IP27, providing resistance against water and dust.
One AAA IEC LR03 (1.5V) alkaline battery.
Data can be transferred using USB cable or micro SD card.
Dimensions: 76mm x 49mm x 16mm ±2mm; Weight: 50g ±5g (excluding battery).
Atrial Fibrillation/Flutter Analysis, Heart Rate Turbulence, Heart Rate Variability, and ST Segment Analysis.
