BPL DF 2617R Biphasic Defibrillator
BRAND :BPL
Detailed Description

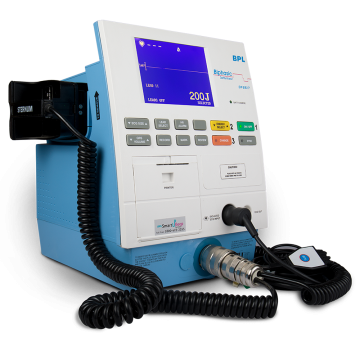

The BPL DF 2617/AED/R is a state-of-the-art biphasic defibrillator designed for maximum efficiency and ease of use in emergency situations. It features a crisp LCD display for accurate readings, remote charging via paddles, and an optional printer for noiseless thermal printing. Equipped with advanced safety and operational features, this defibrillator ensures precise defibrillation with its current-controlled biphasic waveform and energy protocols that are customizable for the first three shocks. Guided CPR instructions provide step-by-step voice assistance, making it user-friendly even for less experienced operators. With event recording capabilities storing up to 24 events and energy efficiency allowing over 100 discharges with a fully charged battery, this defibrillator is an essential tool for saving lives.
- Current-controlled biphasic waveform for effective defibrillation
- LCD display for accurate readings
- Remote charging via paddles for convenience
- Guided CPR with voice and visual instructions
- Noiseless thermal printing for event recording
- Energy efficiency with 100+ discharges of 300J
- Event recording for pre- and post-event data up to 24 events
- Selectable energy protocols for shock sequences
- Compact and lightweight design for portability

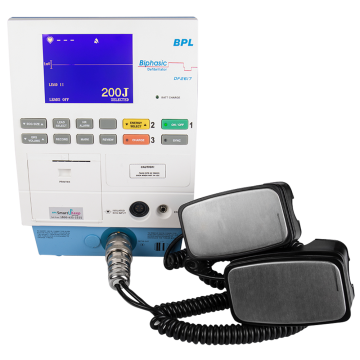

- Integrated adult and pediatric paddles.
Technical Details
| Waveform | Current-controlled biphasic waveform |
|---|---|
| Energy Selection | 2–300 Joules in multiple steps |
| Power Input | 100–240 VAC, 50/60 Hz |
| Battery Type | Rechargeable sealed lead-acid, 12V, 4.5AH |
| Battery Charging Time | Approximately 3 hours to 90%, 18 hours to 100% |
| Dimensions | 260mm (W) x 280mm (D) x 250mm (H) |
| Weight | Less than 10.5 kg, including battery and paddles |
| Event Recording | Stores 3 seconds pre-event and 7 seconds post-event data |
| Display Size | 5.7-inch STN LCD display |
| Operating Temperature | 0°C to 40°C |
| Warranty | 3 Years |
Important Legal Disclaimer
The product images and descriptions on this website are provided for indicative purposes only. For detailed and accurate information, including specifications and features, please visit the respective brand's website. If you have any queries or require further assistance, do not hesitate to contact us directly.
Medical Products: Please be aware that medical products listed on this website should not be used for diagnosis, treatment, or prevention of any medical conditions without consulting a qualified healthcare professional. Always refer to the official product documentation provided by the manufacturer or consult your doctor before making any decisions regarding medical products.
*Please note that product specifications, features, and availability are subject to change without prior notice. All trademarks and registered trademarks are the property of their respective owners.
Current-controlled biphasic waveform.
It records up to 24 events with pre- and post-event data.
Yes, it includes guided CPR with voice and visual prompts.
The device delivers energy up to 300 Joules.
It features a 5.7-inch STN LCD display.
