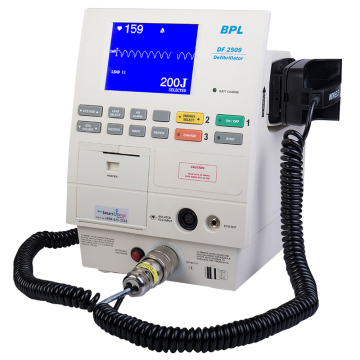

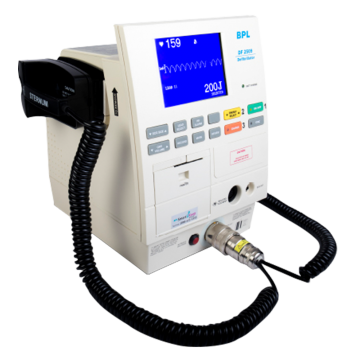

BPL DF 2509 Monophasic Defibrillator
BRAND :BPL
Detailed Description
The BPL DF 2509/R Monophasic Defibrillator is designed for effective defibrillation in critical situations. It features a 5.7-inch STN LCD display for clear visibility, user-selectable energy levels ranging from 2J to 360J, and synchronized cardioversion. This device charges to 360J in less than 5 seconds and supports remote charging through paddles. The defibrillator includes a memory for storing up to 24 events and offers integrated adult and pediatric paddles. With features such as thermal printing, event recording, and a user-friendly interface, the DF 2509/R is an essential addition to medical facilities.
- Monophasic defibrillator with 5.7-inch LCD display
- User-selectable energy levels from 2J to 360J
- Synchronized cardioversion
- Less than 5 seconds to charge to 360J
- Remote charging through paddles
- Stores up to 24 events
- Enhanced battery usage for 100 discharges of 360J
- Thermal printing for event storage
- Integrated adult and pediatric paddles
- Configurable recorder mode for real-time or delayed ECG.
Technical Details
| Display | 5.7-inch STN LCD |
|---|---|
| Energy Levels | Selectable from 2J to 360J |
| Charging Time | <5 seconds to 360J with fully charged new battery |
| Event Memory | Stores up to 24 events |
| Waveform | Monophasic Lown pulse |
| Printer | Thermal array recording (optional) |
| Paper Size | 50 mm x 20 m, print width 40 mm |
| Battery Type | Rechargeable sealed lead-acid battery |
| Dimensions | 260 mm (W) x 280 mm (D) x 250 mm (H) |
| Weight | 10.5 kg (with battery and paddle) |
| Warranty | 3 Years |
Important Legal Disclaimer
The product images and descriptions on this website are provided for indicative purposes only. For detailed and accurate information, including specifications and features, please visit the respective brand's website. If you have any queries or require further assistance, do not hesitate to contact us directly.
Medical Products: Please be aware that medical products listed on this website should not be used for diagnosis, treatment, or prevention of any medical conditions without consulting a qualified healthcare professional. Always refer to the official product documentation provided by the manufacturer or consult your doctor before making any decisions regarding medical products.
*Please note that product specifications, features, and availability are subject to change without prior notice. All trademarks and registered trademarks are the property of their respective owners.
Less than 5 seconds to charge to 360J.
The device has a 5.7-inch STN LCD display.
The device can store up to 24 events.
Energy levels can be selected from 2J to 360J.
Yes, it comes with integrated adult and pediatric paddles.
