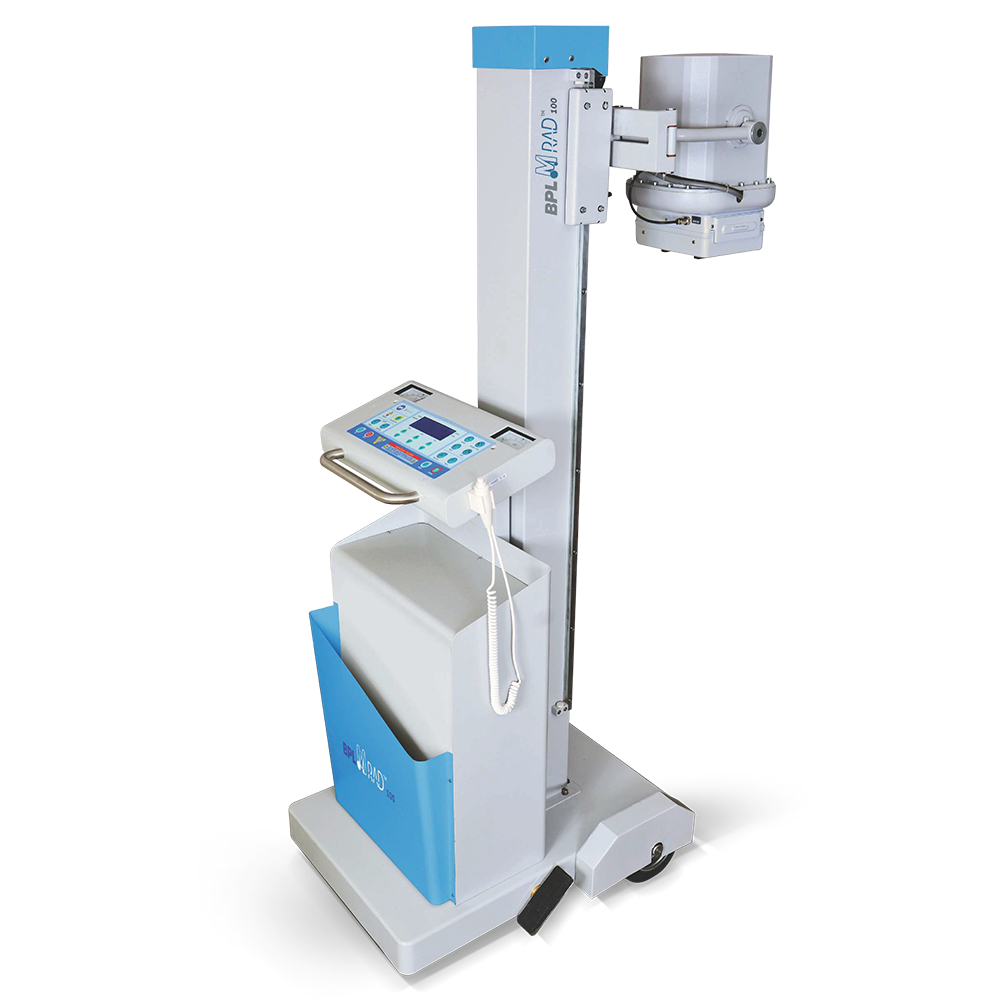

BPL M-RAD 100 Mobile X-ray Machine
BRAND :BPL
Detailed Description
The M-RAD 100 Mobile X-ray Machine is designed to provide high-quality diagnostic imaging with minimal radiation exposure. It features an 8kW power rating and a 100mA range, accommodating various imaging needs. The device operates within a 40–100kV range, adjustable in 2kVp steps, offering flexible imaging options. Equipped with a 2.8 mm² focal spot, it ensures detailed imaging. The user-friendly Advanced Operator Console (AOP) includes an alphanumeric LCD display (4 x 20 characters) for easy operation and 155 anatomical programming options to optimize settings. The manual collimator with 100 lux brightness allows precise beam alignment, and the articulated arm facilitates easy tube movement. Additionally, the machine includes a voltmeter and ammeter to monitor input voltage and output current, enhancing operational safety and efficiency.
- 8kW power rating
- 100mA range
- 40–100kV range with 2kVp/step selection
- 2.8 mm² focal spot for detailed imaging
- Alphanumeric LCD display (4 x 20 characters)
- 155 anatomical programming options
- Manual collimator with 100 lux brightness
- Voltmeter and ammeter for input/output monitoring
- Articulated arm for easy tube movement
- User-friendly Advanced Operator Console (AOP)
Technical Details
| Power Rating | 8kW |
|---|---|
| mA Range | 100mA |
| kV Range | 40–100kV with 2kVp/step selection |
| Focal Spot Size | 2.8 mm² |
| Display | Alphanumeric LCD (4 x 20 characters) |
| Anatomical Programs | 155 options |
| Collimator Brightness | 100 lux |
| Monitoring Instruments | Voltmeter and ammeter for input/output monitoring |
| Arm Design | Articulated arm for easy tube movement |
| Console | Advanced Operator Console (AOP) |
| Warranty | 3 Years |
Important Legal Disclaimer
The product images and descriptions on this website are provided for indicative purposes only. For detailed and accurate information, including specifications and features, please visit the respective brand's website. If you have any queries or require further assistance, do not hesitate to contact us directly.
Medical Products: Please be aware that medical products listed on this website should not be used for diagnosis, treatment, or prevention of any medical conditions without consulting a qualified healthcare professional. Always refer to the official product documentation provided by the manufacturer or consult your doctor before making any decisions regarding medical products.
*Please note that product specifications, features, and availability are subject to change without prior notice. All trademarks and registered trademarks are the property of their respective owners.
The M-RAD 100 has an 8kW power rating and a 100mA range.
It operates within a 40–100kV range, adjustable in 2kVp steps.
It features an alphanumeric LCD display (4 x 20 characters) for easy operation.
The machine offers 155 anatomical programming options for optimized settings.
The manual collimator with 100 lux brightness allows for precise beam alignment.
